This article delves into the often-overlooked impact of speaker cone damage on sound quality. We conducted a controlled experiment involving the intentional damage of a PSB Alpha B speaker, meticulously documenting the effects through objective measurements and subjective listening tests. The experiment focused on both minor and more significant damage to the tweeter and midwoofer, allowing for a comprehensive analysis of the cumulative impact on sound reproduction. This approach combines scientific rigor with practical application, offering valuable insights for audio enthusiasts and users alike.Our methodology involved using pink noise as an audio source and employing a nearfield measurement system to eliminate the influence of room acoustics. This ensured accurate comparisons between the speaker's performance before and after damage. The results, presented through frequency response graphs and audio clips, reveal a clear correlation between the extent of the cone damage and the resulting alterations in sound quality, particularly in the higher frequencies. This study highlights the importance of maintaining the structural integrity of speaker components for optimal audio reproduction.
Read more: Top 5 Best Bluetooth Speakers 2025: Ultimate Guide & Reviews
The Experiment: Deliberately Damaging a Speaker

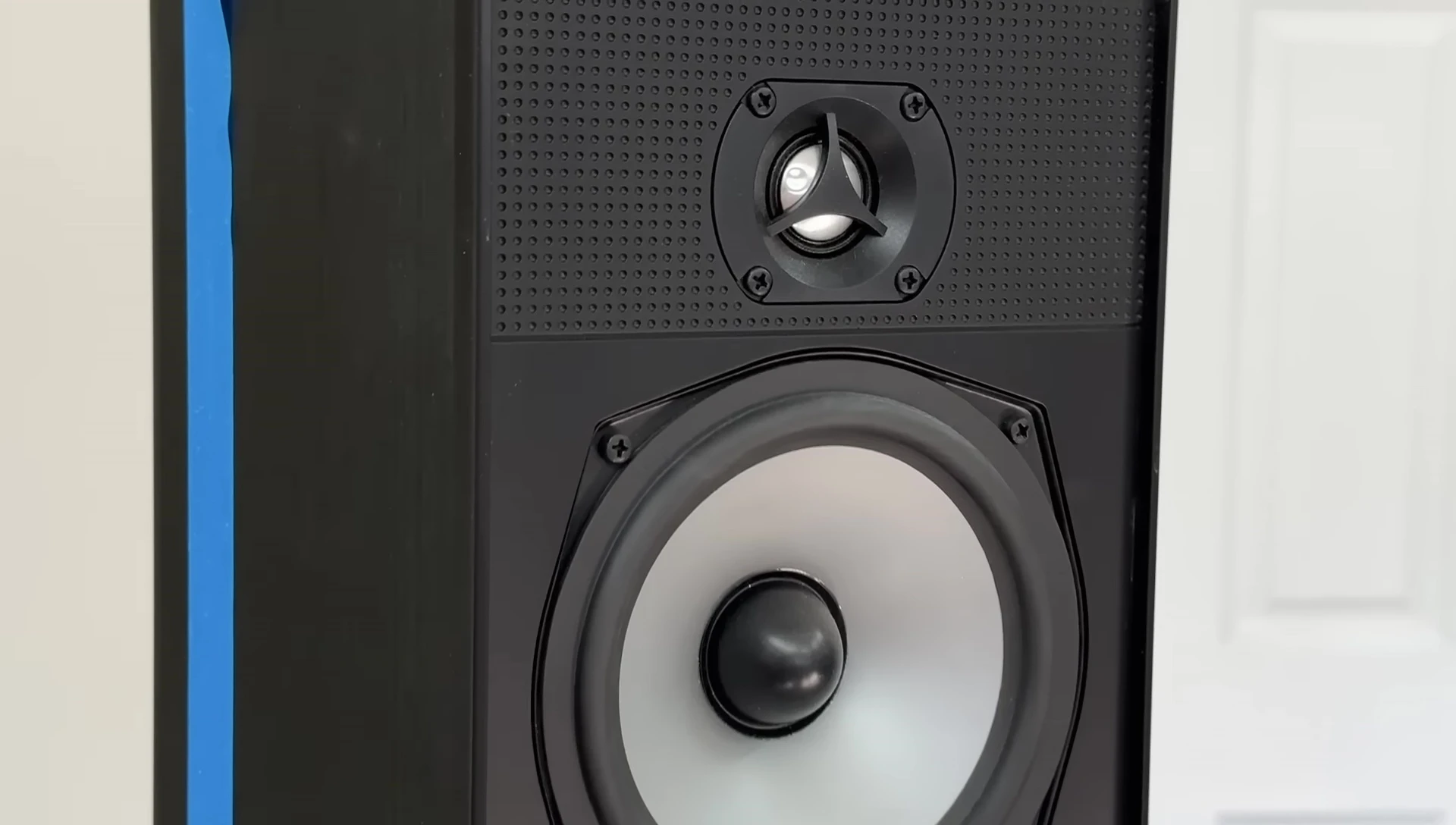

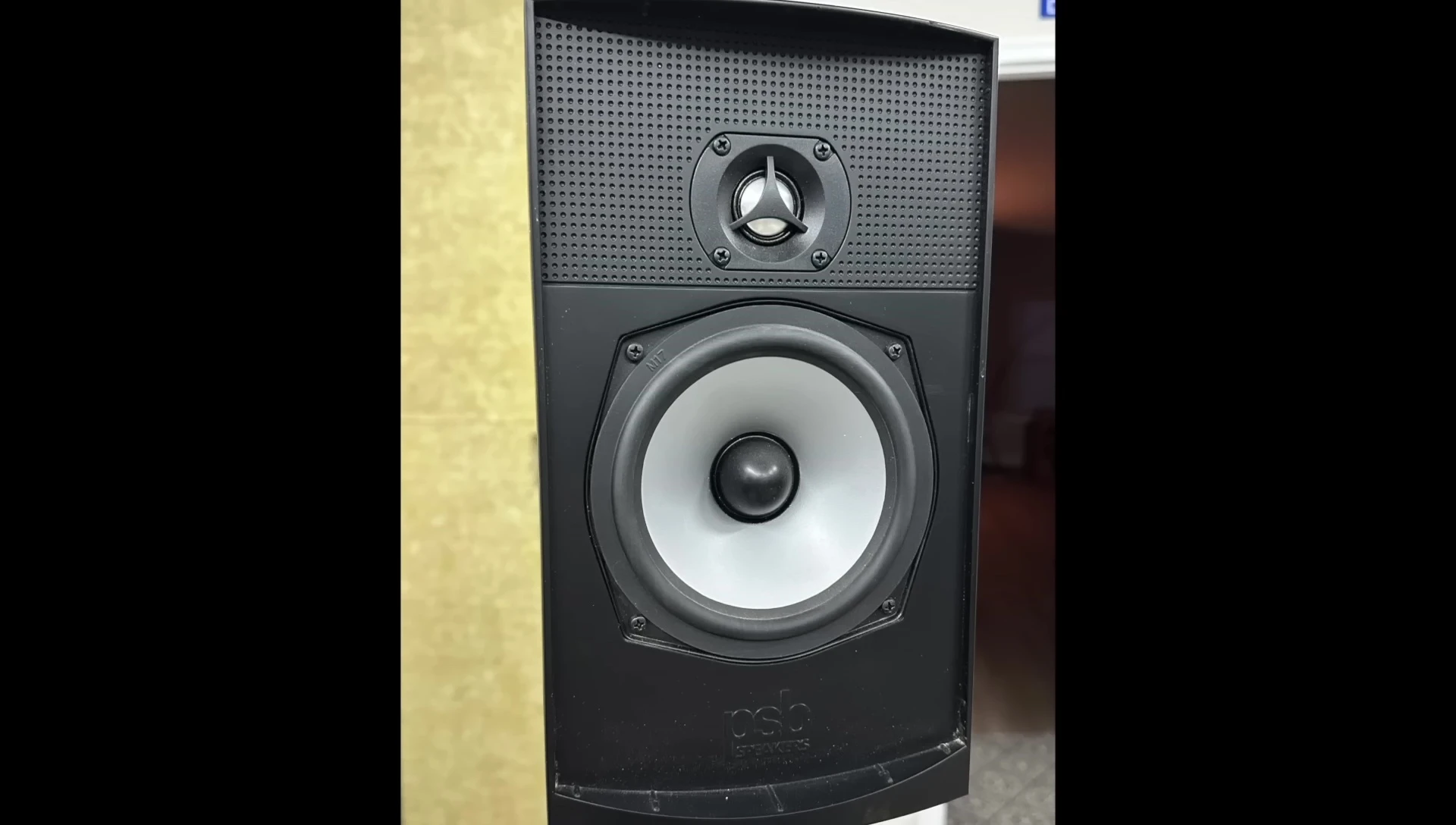

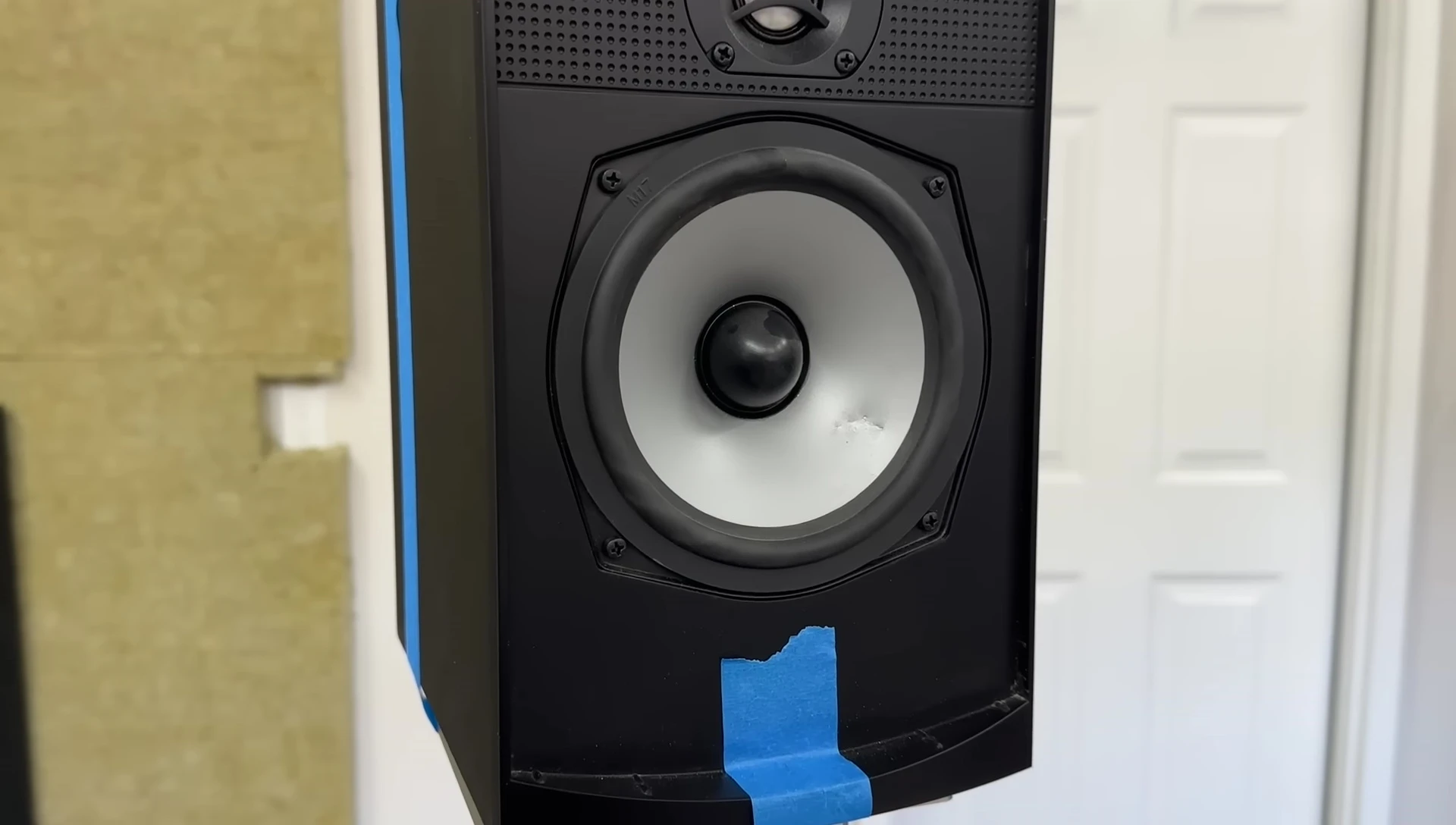

This experiment involved intentionally damaging a PSB Alpha B speaker to assess the impact on sound quality. The speaker, loaned by a viewer, was subjected to controlled damage: dents to the tweeter and midwoofer. Measurements and sound clips were taken before and after the damage to illustrate the changes.
The process involved several iterations of damage. Initial dents were relatively minor, with a later test involving more significant damage to assess the cumulative impact. This controlled approach allowed for a clear comparison of the speaker's performance in various states of damage.
The goal was to provide a scientific perspective on the impact of common speaker damage and to complement subjective listening tests with objective data analysis. The results would hopefully guide users in determining the seriousness of damaged speakers.
Sound Quality Analysis: Before and After Damage
Pink noise was used as the audio source for the experiment, ensuring a consistent input signal. The speaker's response to the pink noise was captured both before and after the damage, providing an objective measure of how the speaker's frequency response changed. The results were presented in both audio clips and visual frequency response graphs.
Listening tests showed noticeable differences between the original and damaged speaker, especially in the high frequencies. The initial listening test highlighted the impact of the damage, showing a significant difference in sound quality. A high-pass filtered version of the pink noise, focusing solely on higher frequencies, further underscored these differences.
The subjective listening test confirmed the objective measurements, demonstrating that the damage to the tweeter and woofer resulted in a noticeable alteration of the overall sound quality. Higher frequencies were particularly affected by the damage, reflecting in the audio clips and graphs.

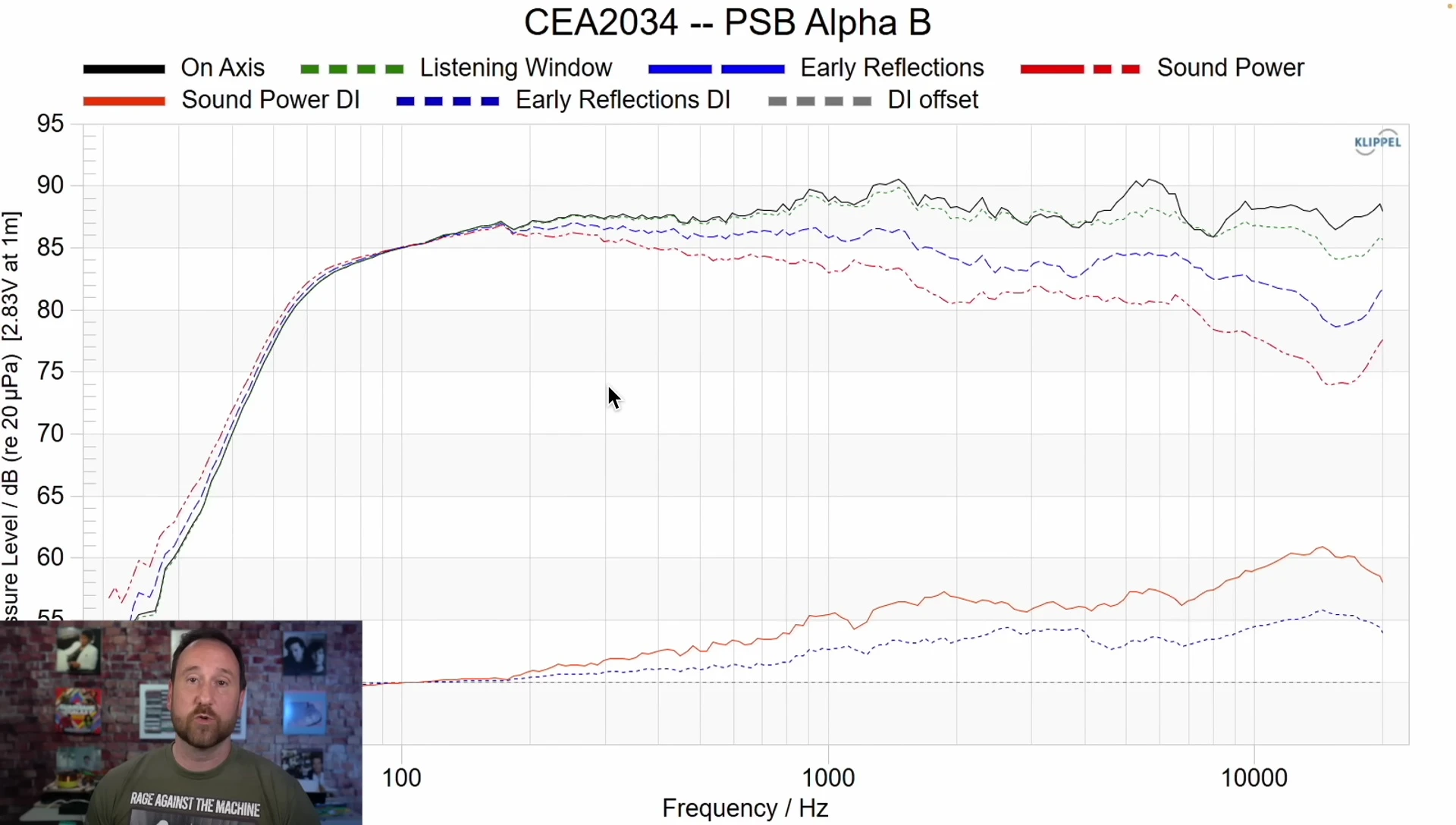

Objective Data: Unveiling the Impact of Damage
The experiment utilized a nearfield measurement system to obtain objective data, eliminating room acoustics from the analysis. This allows for accurate comparisons across different speakers and listening environments, providing a reliable baseline for evaluation.
The data revealed a significant alteration of the speaker's frequency response after the damage. The high-frequency response showed the most noticeable deviations, consistent with the subjective listening tests and the damage inflicted on the tweeter. Harmonic distortion increased slightly in the high-frequency range after the damage.

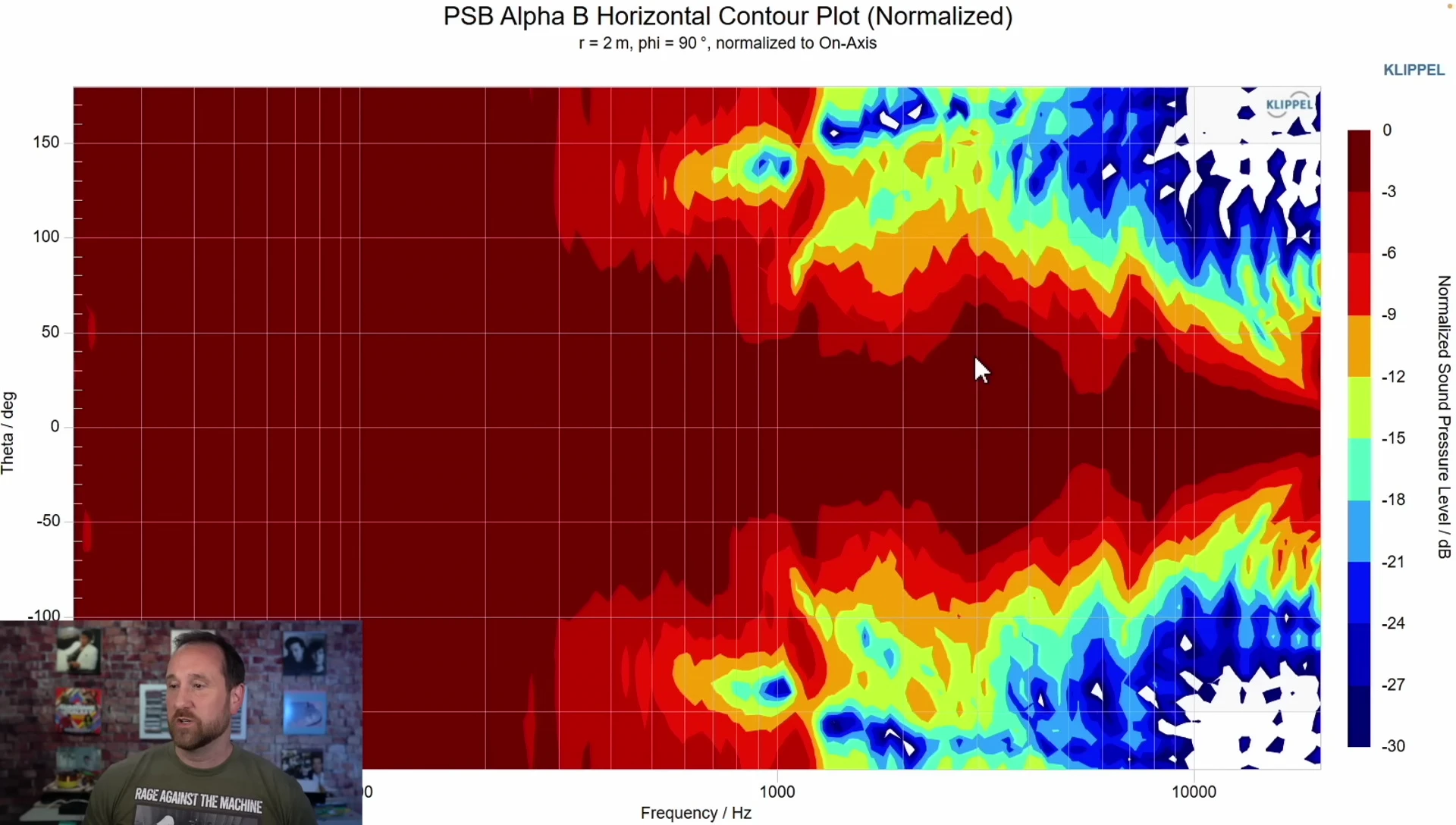

The analysis of the speaker’s directivity (how sound radiates horizontally and vertically) showed clear changes due to the damage. The damaged speaker exhibited altered radiation patterns, particularly in the high-frequency region, further contributing to the perceived change in sound quality.
Conclusion: Assessing the Impact of Damage
The experiment demonstrated that even minor damage to a speaker's cone, particularly in the tweeter and at higher frequencies, can significantly affect sound quality. The changes were readily apparent in both subjective listening tests and objective measurements.

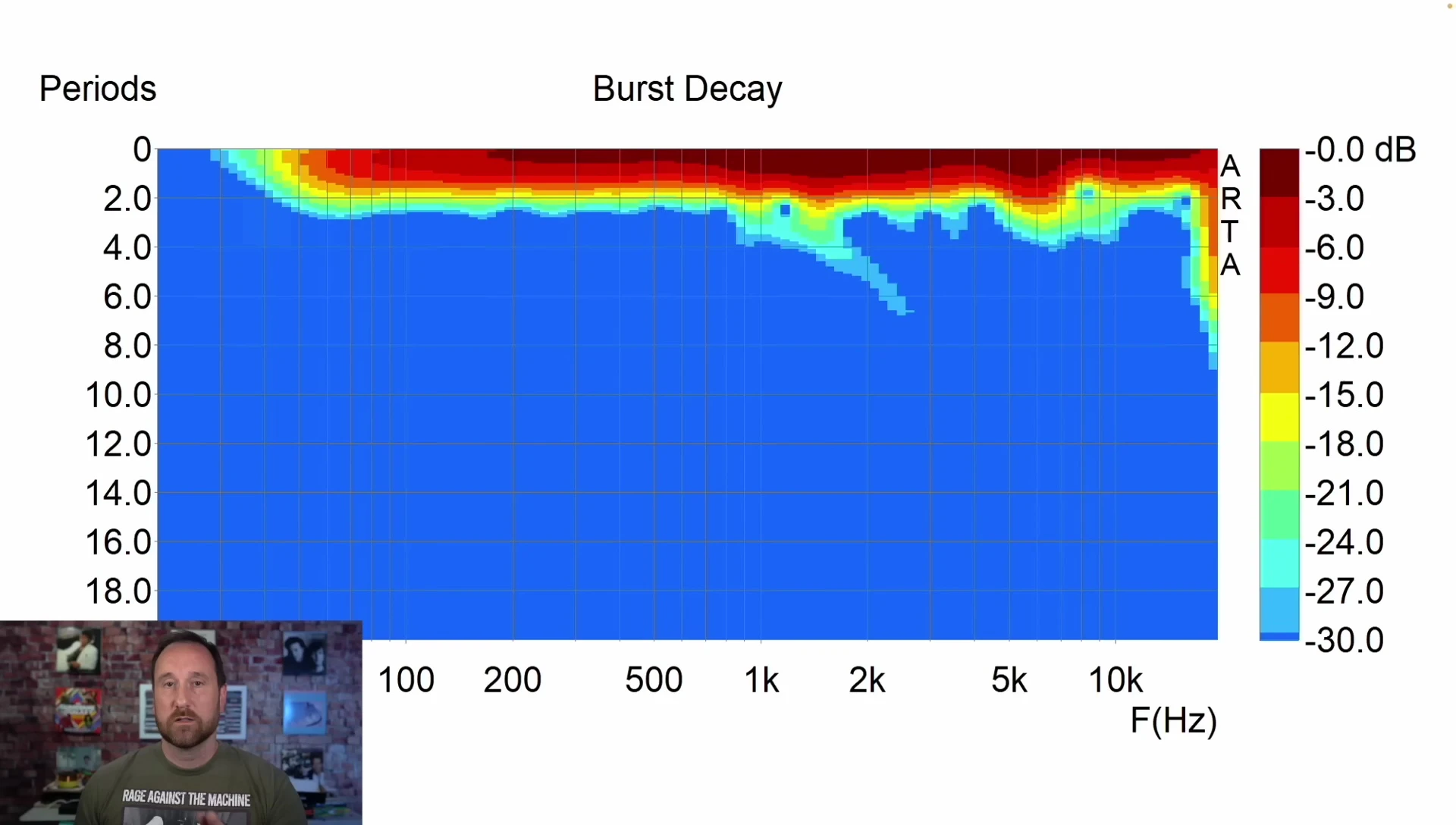

The most noticeable impact was observed in the high-frequency response, where the damaged speaker exhibited increased distortion, altered directivity, and prolonged decay times. This underscores the importance of maintaining the structural integrity of the speaker's components.
For users, this study highlights the need to carefully assess the condition of used speakers. While minor cosmetic blemishes might be acceptable, significant damage to the cone, especially in the high-frequency region, will likely result in noticeable sound degradation and justifies replacement or repair.
