Center channel speakers are crucial for clear dialogue in home theaters, yet many suffer from design flaws leading to poor sound quality, especially in multi-seat setups. These flaws often manifest as muddiness, comb filtering, and inconsistent sound across listening positions, significantly impacting the viewing experience. This review delves into the Paradigm 9C, a high-end three-way center channel speaker promising superior performance with its unique coaxial design and large drivers. We examine whether this speaker lives up to its price tag and its claims of improved dispersion and clarity, exploring both its strengths and weaknesses through rigorous testing.This in-depth analysis goes beyond subjective listening impressions, incorporating objective measurements such as frequency response, directivity, distortion, and compression. We use nearfield scanning to obtain accurate data unaffected by room acoustics, providing a precise evaluation of the Paradigm 9C's performance. Our findings reveal both unexpected strengths and significant shortcomings, ultimately determining if the speaker is a worthwhile investment for discerning home theater enthusiasts, especially those prioritizing clear, consistent dialogue across multiple listening positions.
Read more: Top 5 Best Bluetooth Speakers 2025: Ultimate Guide & Reviews
The Common Center Channel Speaker Issue
Many center channel speakers suffer from a significant design flaw: the placement of the woofer and tweeter. This often leads to comb filtering in the mid-range frequencies, resulting in a dull and muddy sound for listeners.
This problem is amplified in multi-seat home theater setups. People sitting off-center experience a drastically different sound than those in the sweet spot, impacting dialogue intelligibility and overall clarity.
Poor dialogue clarity has become a major concern for audiences in recent years, often due to low-level recording and mixing techniques. The issue is further exacerbated by poorly designed center speakers.
The Paradigm 9C: A Three-Way Approach
The Paradigm 9C, a three-way center channel speaker, aims to address these issues with its unique coaxial mid-range and tweeter, and two 7-inch mid-bass drivers. Its design suggests improved sound dispersion.
The speaker's large size implies a potential for good output, low distortion, and wide dispersion. These characteristics are often crucial for a satisfying multi-seat home theater experience.
However, initial listening tests revealed unexpected results, raising questions about its performance and the effectiveness of its three-way design.
Paradigm 9C: Detailed Analysis & Measurement Data

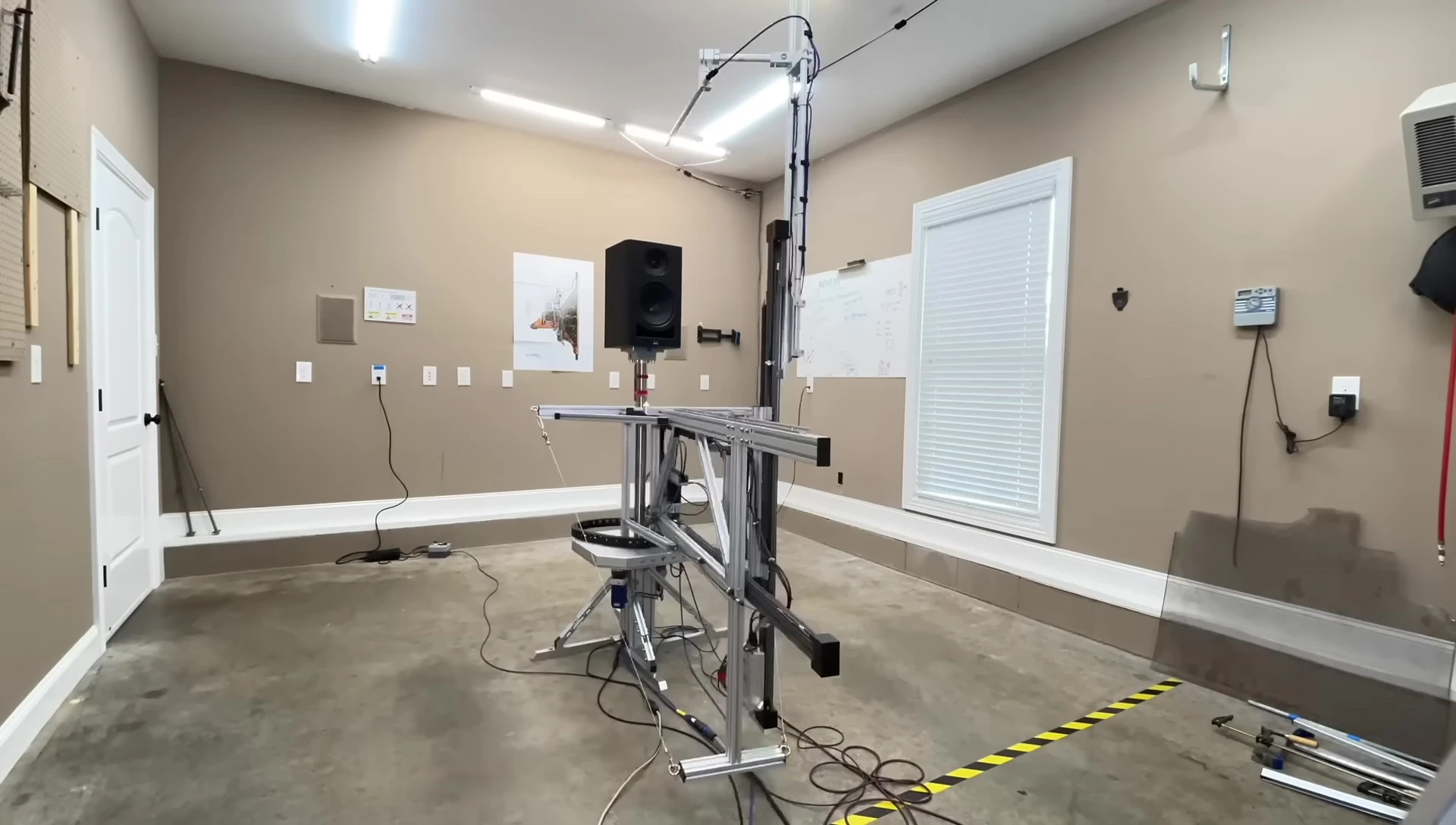

Measurements were taken using a nearfield scanner to obtain accurate data, free from room influence. This allowed for a precise evaluation of the speaker's frequency response and directivity.

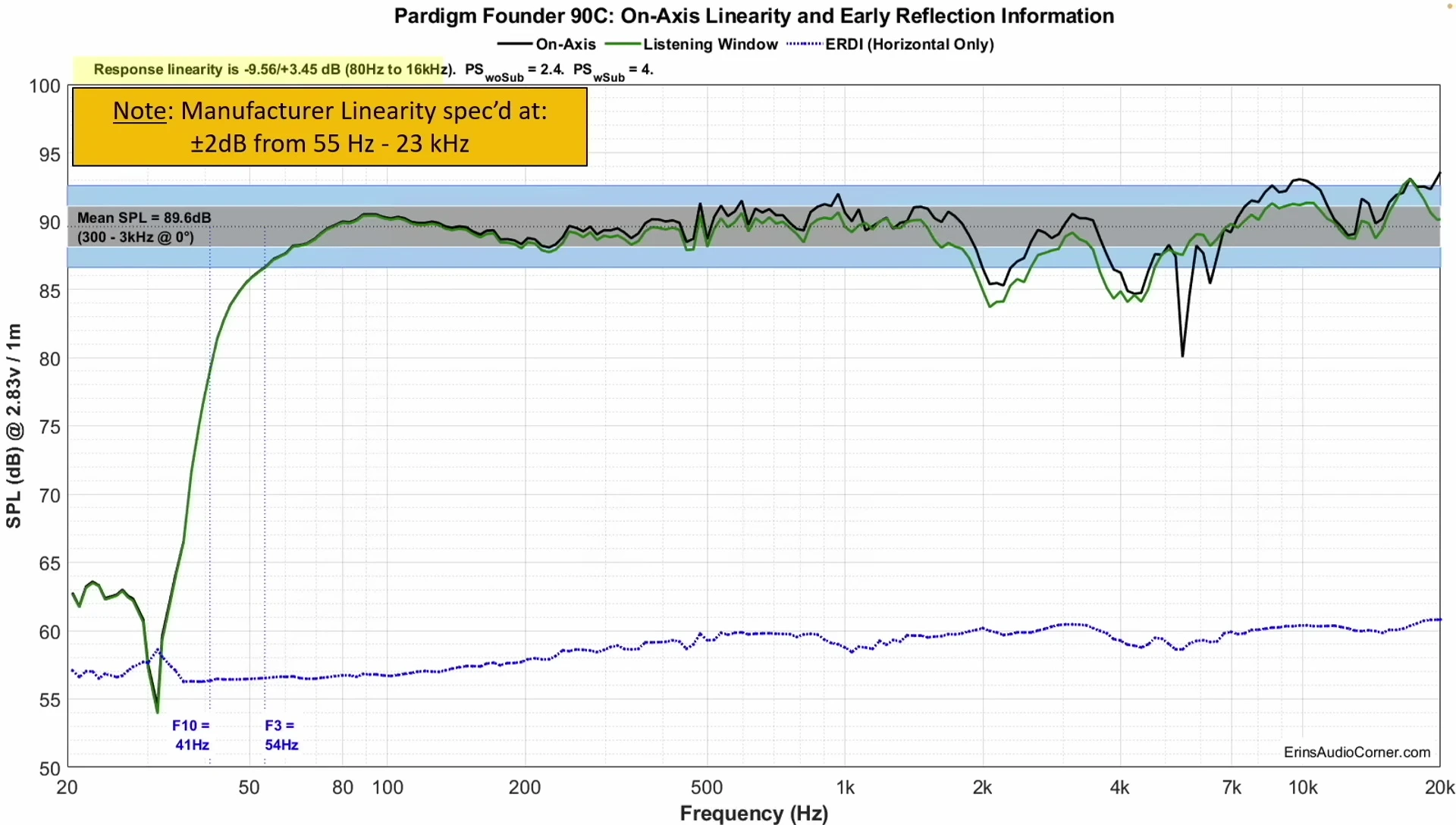

The on-axis frequency response shows good sensitivity (around 90dB), low-end extension (F3 at 54Hz, F10 at 41Hz), and linearity in the lower frequencies. However, the mid-range and treble response show significant issues.

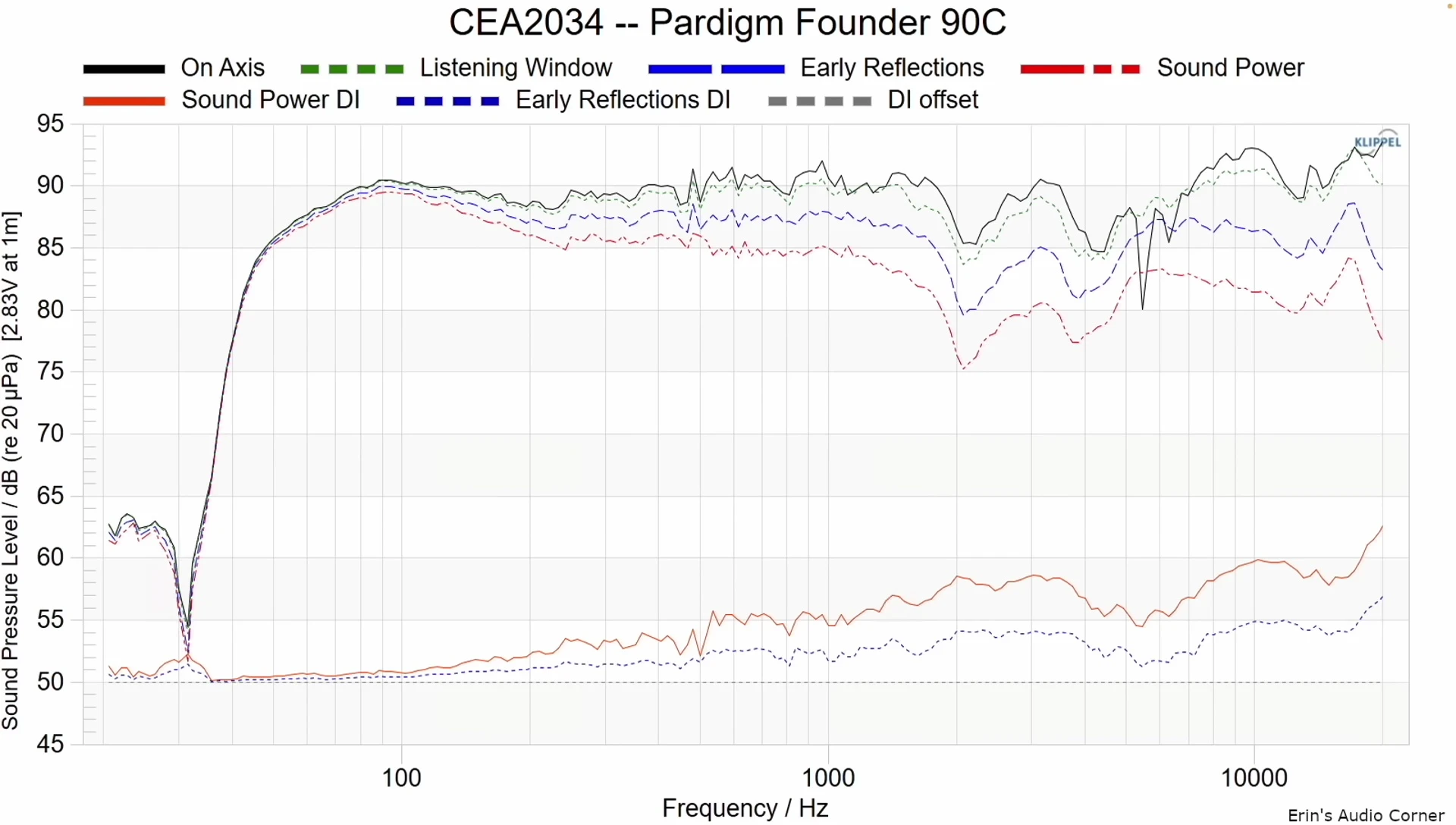

Directivity measurements reveal inconsistencies, particularly in the region where the tweeter is active. This suggests poor coaxial design and a lack of consistent sound across listening positions.
Paradigm 9C: Distortion, Compression & Impedance

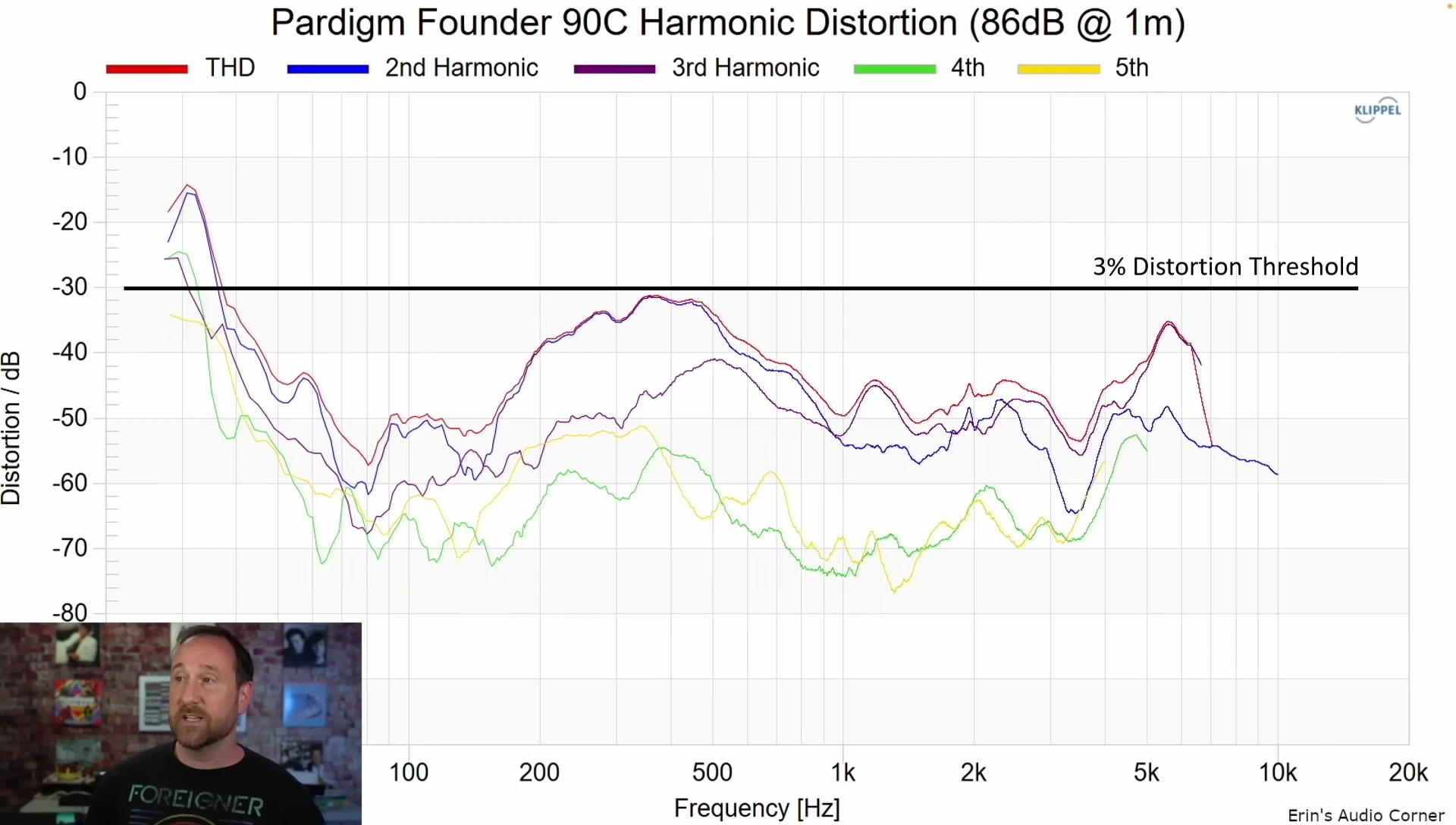

Distortion measurements at 86dB and 96dB revealed high levels of distortion, especially in the mid-range, which is unacceptable for a speaker of this size and price.
Compression tests further highlight the speaker's limitations. The mid-range shows significant peaking and compression, indicating problems in the design or component selection.

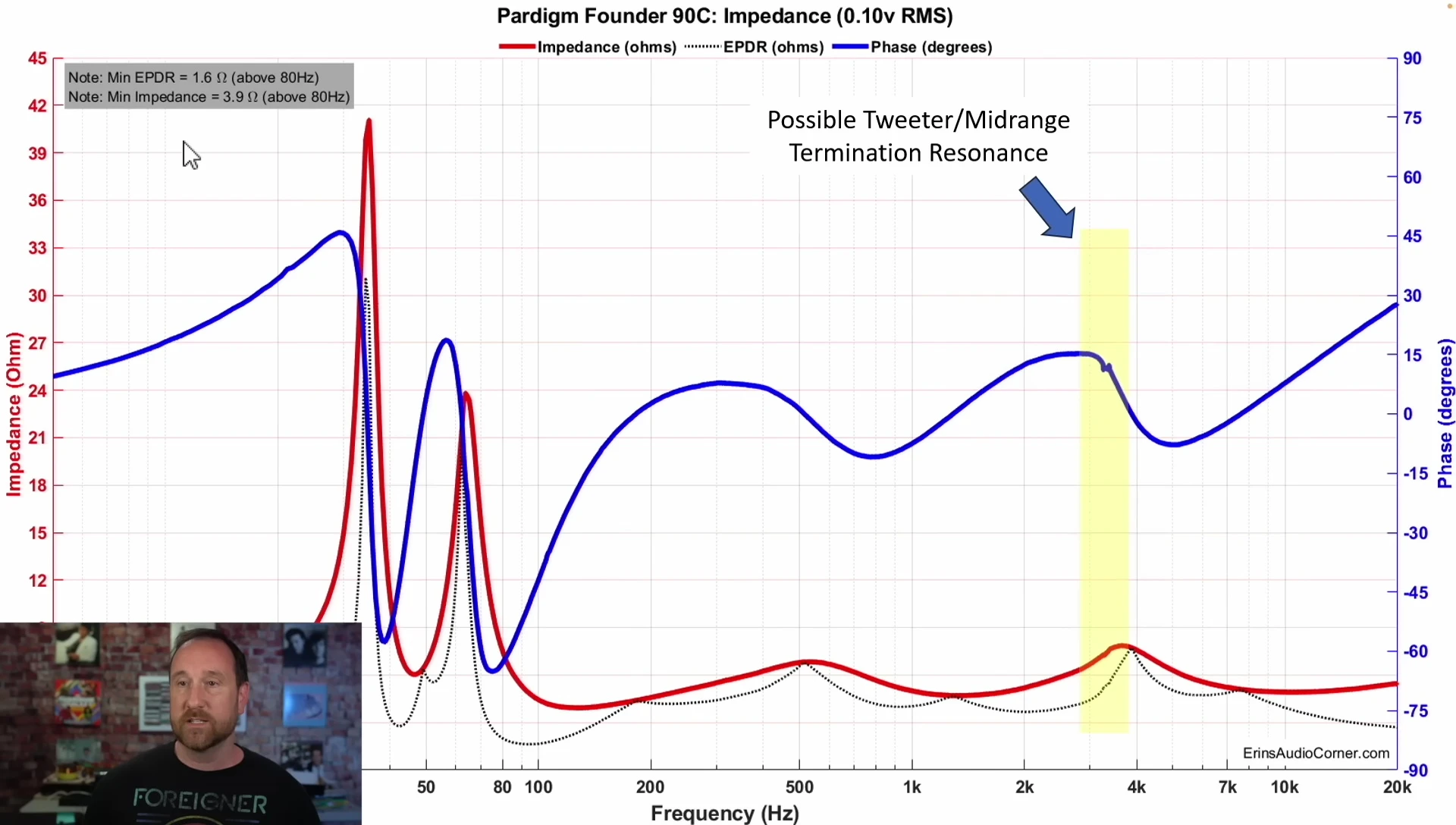

The impedance plot shows a nominal impedance of approximately 4 ohms, but dips to 1.6 ohms, demanding significant current from an amplifier, especially a Class AB type. A powerful amplifier with 2-ohm capability is recommended.
Conclusion: Is the Paradigm 9C Worth It?
Despite its three-way design and potential for good bass, the Paradigm 9C exhibits significant issues in the mid-range and treble. The measurements reveal poor coaxial design, high distortion and compression, especially at higher volumes.
While its vertical dispersion is good, the inconsistency in horizontal dispersion is a major drawback, rendering it unsuitable for multi-seat home theaters. The poor mid-range clarity severely impacts dialogue intelligibility and overall audio quality.
At a retail price of approximately $2899, the Paradigm 9C falls short of expectations. Given its flaws, it's not recommended, particularly for those seeking a high-quality multi-seat home theater experience.
