This article delves into the often-overlooked aspect of speaker performance: off-axis frequency response. While on-axis measurements, focusing on the sound directly in front of the speaker, are commonly discussed, a complete understanding of audio reproduction requires considering how sound radiates away from this central axis. This off-axis sound significantly impacts the listener's perception, influenced by room size, listening distance, and speaker design. We'll explore how these factors interact to shape the overall listening experience.Understanding the differences between on-axis and off-axis sound is crucial for optimizing your listening environment and appreciating the nuances of speaker design. We will examine horizontal and vertical off-axis responses, analyze the impact of speaker configurations like coaxial and multi-driver systems, and introduce visual tools such as spectrograms and polar plots to illustrate sound dispersion patterns. By comparing examples like the Cali IN5 and Focal Twin 6B, we'll demonstrate how off-axis behavior can vary dramatically and highlight the importance of considering this aspect when evaluating speaker performance.
Pros And Cons
- Symmetrical design (data for one side sufficient)
- Relatively smooth off-axis response, especially considering the lack of tweeters on the sides and back.
- High-frequency fall-off at 90 degrees is expected but could be smoother.
- Relatively good on-axis response
- Significant droop in the crossover region (1kHz-3kHz) when listening above or below the tweeter.
- Not well-mated tweeter and midwoofer vertically in the crossover region.
Read more: Top 5 Best Bluetooth Speakers 2025: Ultimate Guide & Reviews
Understanding On-Axis and Off-Axis Sound
On-axis sound refers to the sound directly emitted from the speaker towards the listener. This is the primary sound wave reaching your ears first. It significantly impacts the initial perception of the audio. The tweeter is typically the reference point for this measurement.
Off-axis sound, in contrast, encompasses sound waves that radiate away from the direct listening axis. These waves bounce off walls and other surfaces in the room, creating reflections and affecting the overall listening experience. The location of the listener relative to the speaker heavily influences how off-axis sound impacts perception.
Room Acoustics and Listening Position
The size of the listening room plays a crucial role in how much off-axis sound is reflected back to the listener. Smaller rooms tend to have more noticeable off-axis reflections due to closer proximity to walls and surfaces. Conversely, larger rooms generally reduce the impact of off-axis sound reflections.
Your listening distance significantly influences the balance between on-axis and off-axis sound. Close proximity emphasizes on-axis sound, while greater distances allow more off-axis reflections to be perceived, blending them with the initial on-axis wave.
Horizontal vs. Vertical Off-Axis Response
Horizontal off-axis response measures the sound dispersion across a plane parallel to the floor. This is often less critical than vertical response because sidewall reflections tend to be more consistent with the main sound. Most speakers fare relatively well in horizontal measurements.
Vertical off-axis response examines sound distribution in a plane perpendicular to the floor. This becomes more critical because the tweeter and other drivers may be physically separated, causing potential inconsistencies in frequency response depending on the listener's vertical position relative to the speakers.
Point Source vs. Multi-Driver Speakers
Ideally, speakers should function as point sources, meaning all frequencies emanate from a single point. This creates a more cohesive and natural soundstage. Coaxial and concentric speaker designs aim to achieve this.
Multi-driver speakers, which use separate tweeters, mid-range drivers, and woofers, struggle to achieve true point-source behavior. The crossover frequency, where different drivers take over, can lead to variations in off-axis sound if not implemented carefully.
Analyzing Off-Axis Data: Examples and Interpretations
The provided data for the Cali IN5 and Focal Twin 6B speakers showcase different scenarios. The Cali IN5, a symmetrical design, shows consistent horizontal off-axis response. Its vertical response is uniform due to its coaxial design.

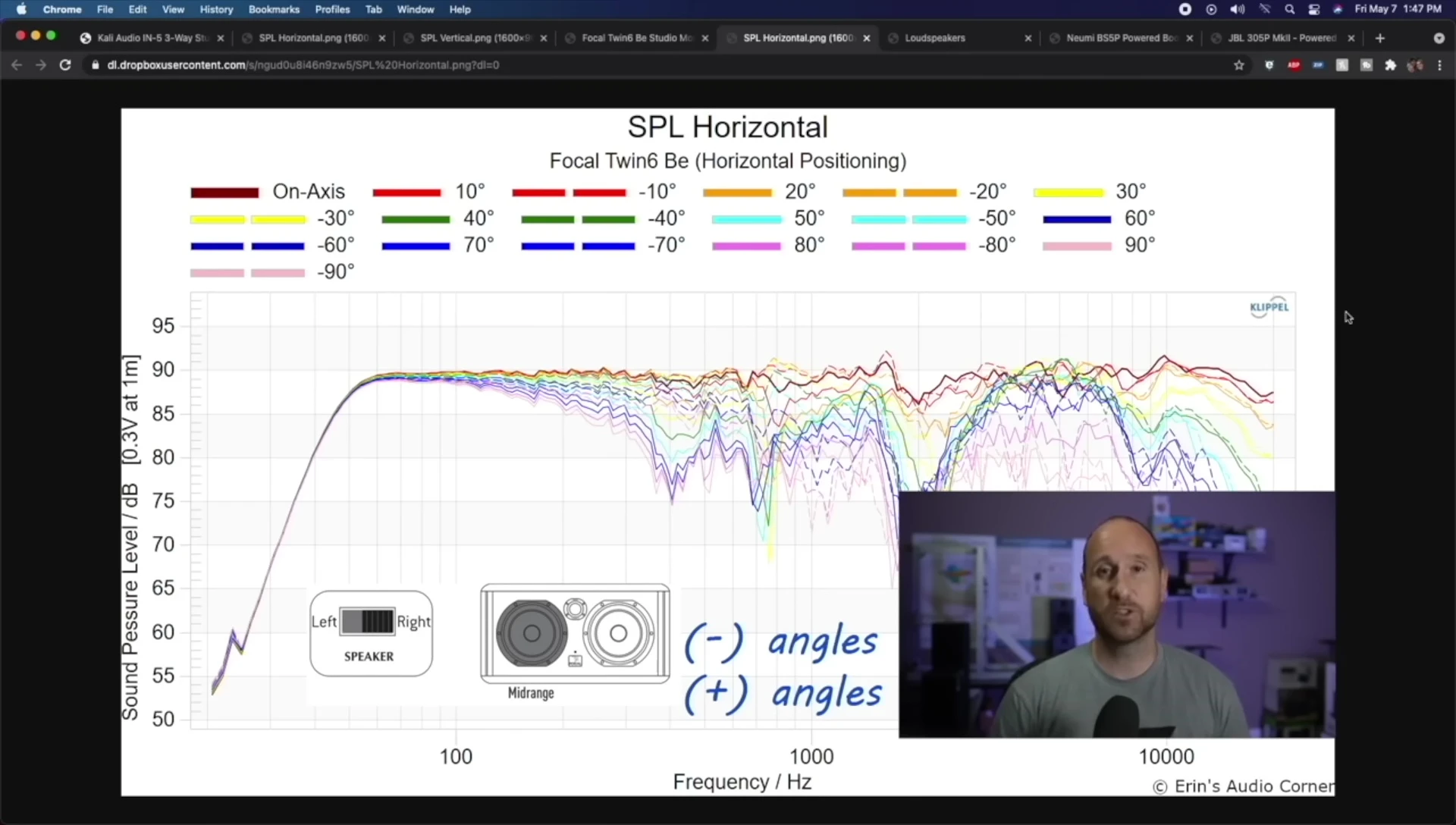

The Focal Twin 6B, with an offset tweeter, demonstrates differences in the plus and minus 90-degree horizontal responses. This highlights the importance of considering driver placement and asymmetry when interpreting off-axis data. The Klipsch speaker showcased off-axis response issues around the crossover frequency.
Visualizing Off-Axis Data: Spectrograms and Polar Plots

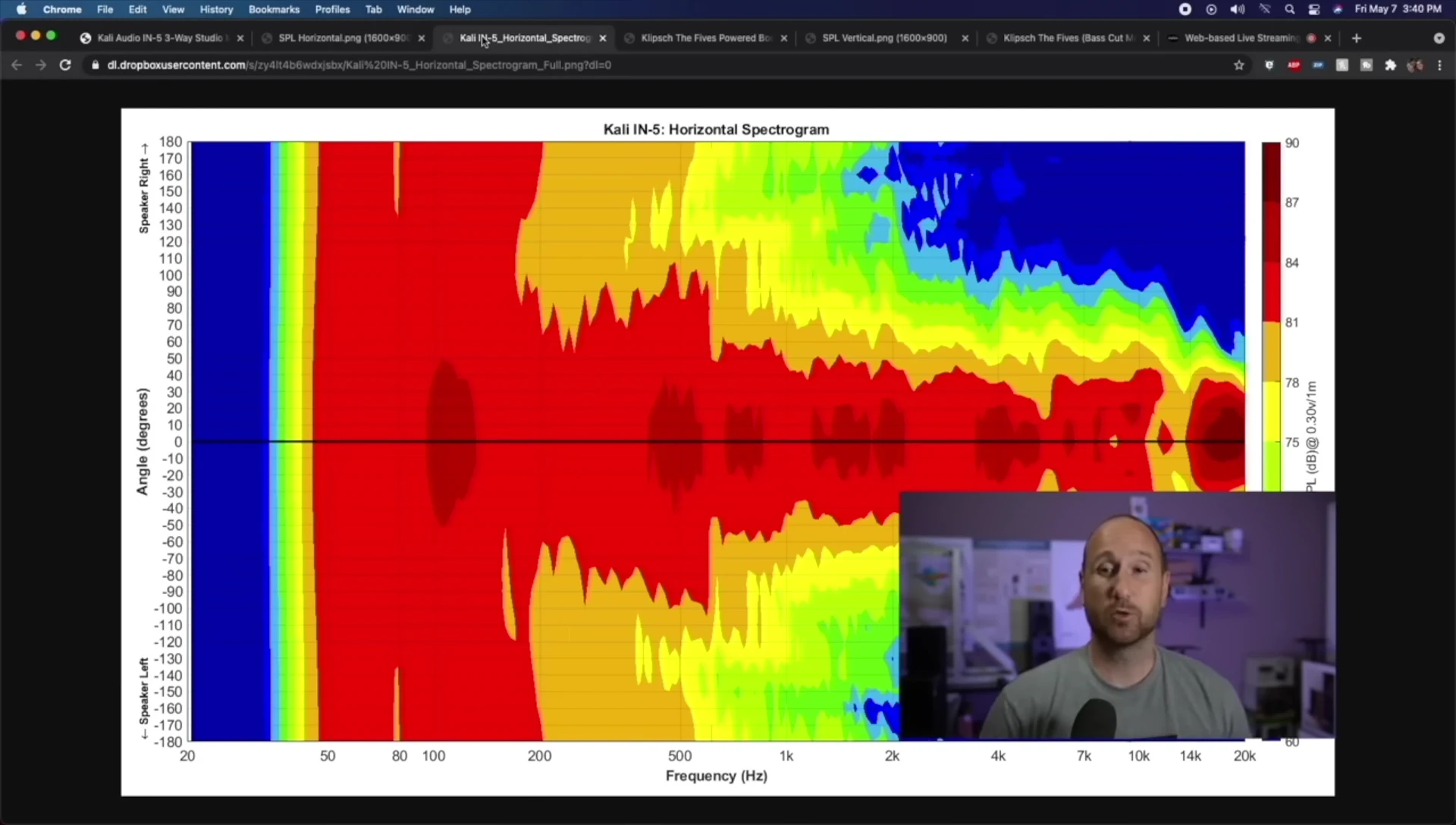

Spectrograms, also known as contour graphs, present frequency response across various angles. The x-axis displays frequency, while the y-axis shows the angle of the response. This allows for a quick visual assessment of the speaker's directivity.
Polar plots provide an intuitive way to represent the speaker's radiation pattern. This top-down view clearly shows how sound dispersion changes across the entire frequency range, offering a unique perspective on directivity.
Conclusion: The Importance of Off-Axis Response
Off-axis frequency response is crucial for understanding a speaker's performance in a real-world listening environment. It influences how sound reflects in a room and affects the overall listening experience.
While on-axis response offers the direct sound, understanding off-axis behavior is critical for predicting soundstage, imaging, and overall tonal balance. Speakers with smooth, consistent off-axis responses generally offer a more cohesive and natural sound. The presented data and visualization techniques help identify potential issues and optimize speaker placement.
