This article details a DIY upgrade to a 10-inch active speaker box, focusing on a crucial material change that dramatically improved sound quality. The original design, constructed from thin 3mm plywood, suffered from excessive vibration at higher volumes, resulting in a compromised listening experience. This wasn't a matter of aesthetics; the core problem lay in the insufficient structural integrity of the plywood, leading to unwanted resonance and a muddy sound.The upgrade involved replacing the plywood with 9mm MDF (Medium-Density Fiberboard), a denser and stiffer material offering superior sound damping. This change, along with the addition of a robust internal wooden frame for added support, significantly reduced vibration and produced a cleaner, richer audio output. This article documents the entire process, from material selection and construction techniques to the final results, offering a valuable guide for DIY audio enthusiasts seeking to build a high-quality, yet affordable, active speaker system.
Pros And Cons
- Upgraded from 3mm plywood to 9mm MDF for reduced vibration at loud volumes
- Includes 10-inch double coil subwoofer
- Features MP3 playback via USB, memory card, and Bluetooth
- Uses a triple volume control
- Power cable is 1m long
- Previous 3mm plywood version vibrated excessively at higher volumes
- The writing on the gigabas control is low quality (printed on paper)
Read more: Top 5 Best Bluetooth Speakers 2025: Ultimate Guide & Reviews
Initial Design Flaws and the Need for an Upgrade
The initial iteration of this 10-inch active speaker box used 3mm plywood. While visually appealing, its thin construction resulted in significant vibration at higher volumes, compromising audio quality and the overall listening experience. This wasn't a matter of aesthetics, as the appearance remained consistent regardless of material thickness. The core issue stemmed from the inadequate structural integrity of the thin plywood, leading to unwanted resonance.
The primary goal of the upgrade was to enhance the sound quality by mitigating these vibrations. The thin plywood acted as a sounding board, amplifying unwanted noise rather than delivering a clean, crisp sound. By addressing this fundamental structural weakness, the improved speaker box aims to provide a much more pleasant listening experience.
Material Upgrade: From Plywood to 9mm MDF
The upgrade involved switching to a 9mm MDF (Medium-Density Fiberboard) for enhanced rigidity and reduced vibration. MDF is denser and stiffer than plywood, providing significantly better sound damping. While using thicker plywood would also have helped, MDF offers superior performance for this type of application. Choosing the right material was crucial for minimizing unwanted vibrations and achieving a richer, clearer sound.
The choice of 9mm MDF was a balance of structural integrity and weight. Thicker materials would be even more resilient, but also heavier, and potentially impacting portability. This thickness provides a good compromise between durability and weight, making the speaker box easy to transport and handle while ensuring it can withstand higher volume levels without undue vibration.
Construction and Internal Reinforcement

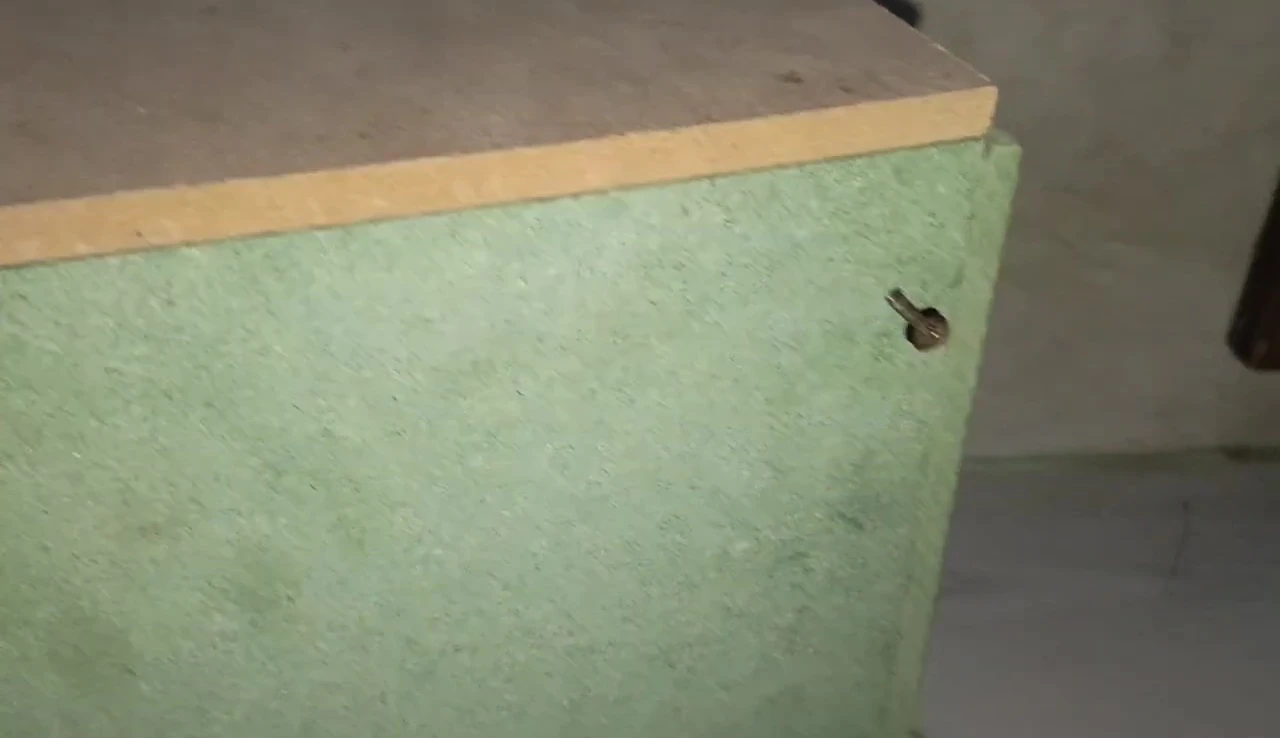

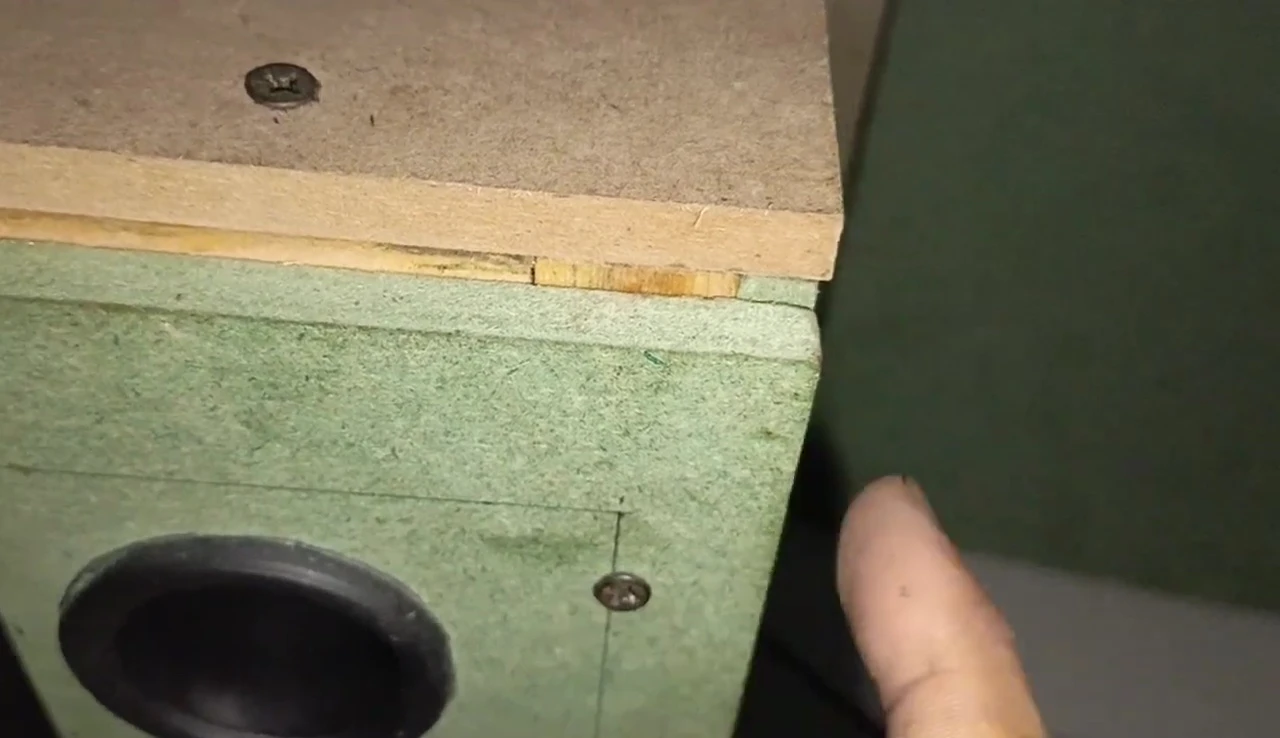

The speaker box was constructed using screws, prioritizing a lighter-weight design. To prevent the screws from potentially damaging the MDF near the edges, a robust internal wooden frame was incorporated, adding structural support. This frame distributes stress evenly, enhancing durability and preventing cracks or damage.
The use of screws, along with the internal frame, contributes to the overall stability of the box and prevents the components from rattling at higher volumes. This design balances the desire for lightweight construction with the need for structural integrity, making it a practical choice for a portable, durable speaker system.
Components and Specifications

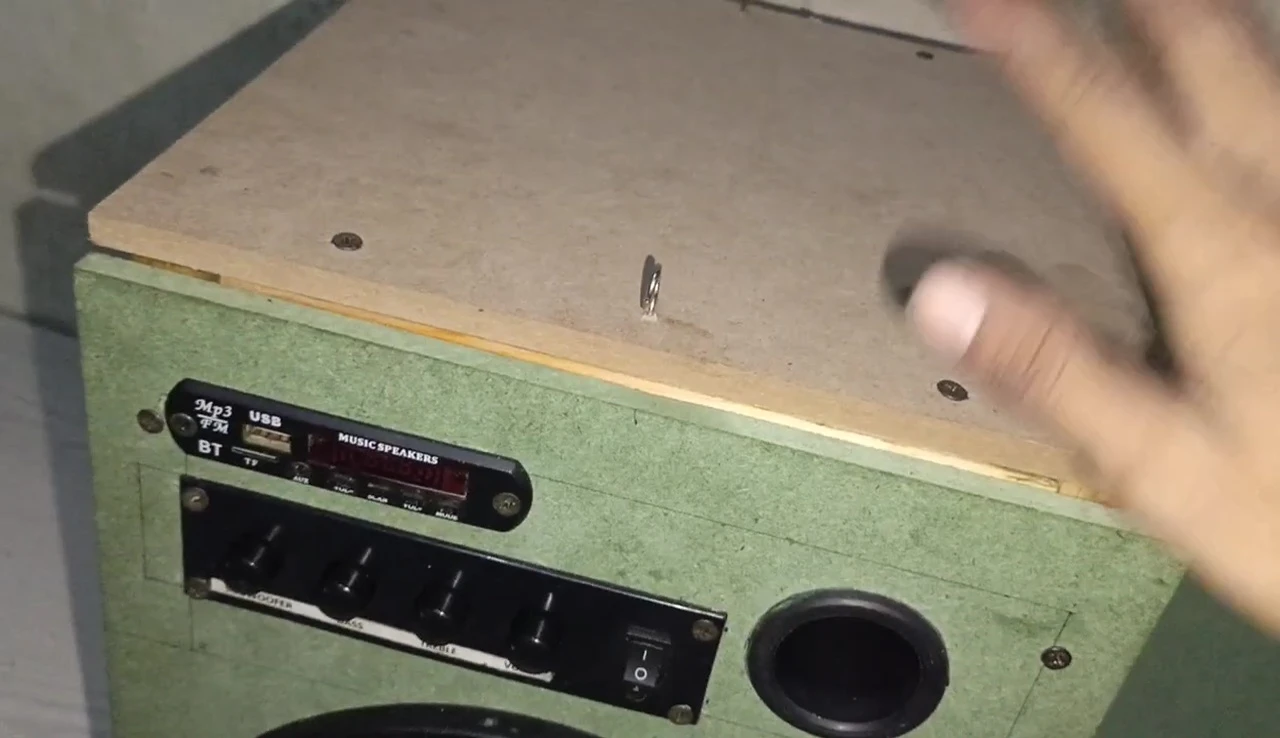

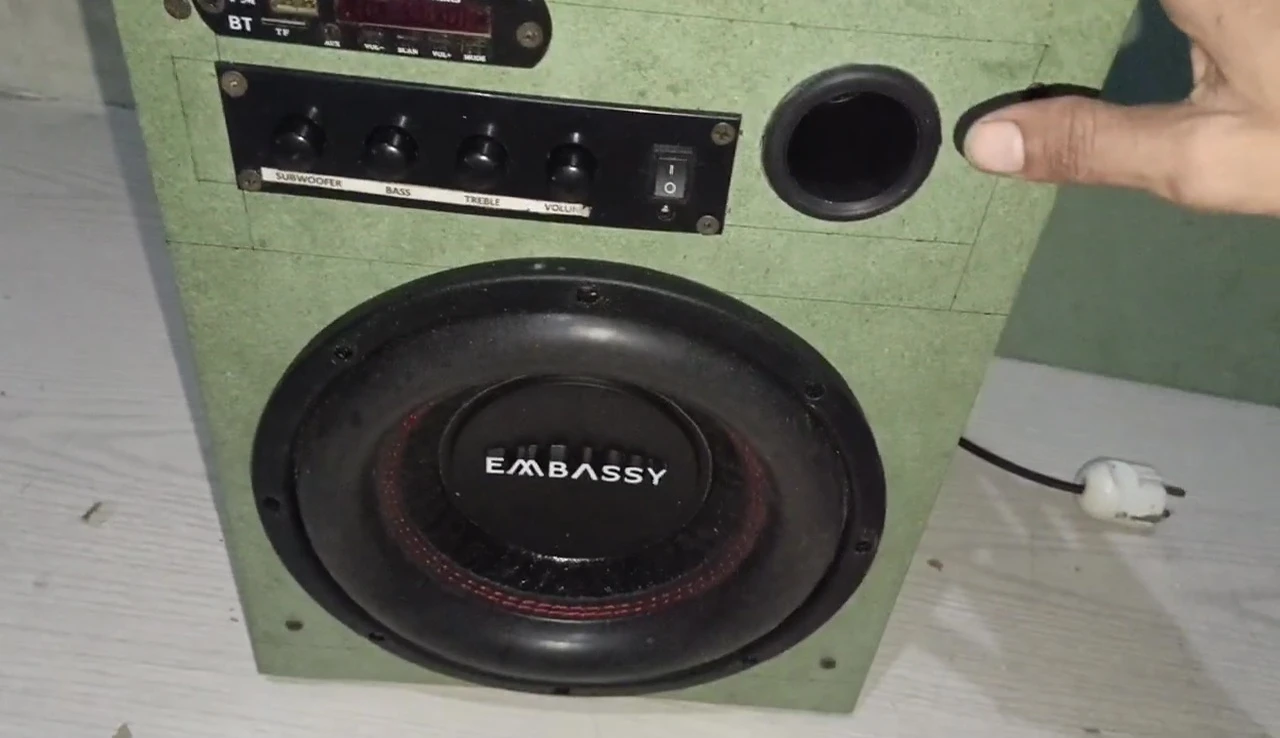

The speaker uses a 10-inch dual-coil subwoofer and features a built-in MP3 player with USB, SD card, and Bluetooth connectivity. A triple-volume bass knob allows users to easily adjust the bass level to their preferences. The speaker housing dimensions are 30cm x 30cm x 40cm, constructed from six MDF sheets.
The cost of the MDF boards was approximately Rp100,000. The overall component selection prioritizes versatility and high-fidelity audio reproduction. The addition of various input methods caters to a variety of user preferences and devices, while the bass control knob provides greater audio customization.
Internal Build and Components

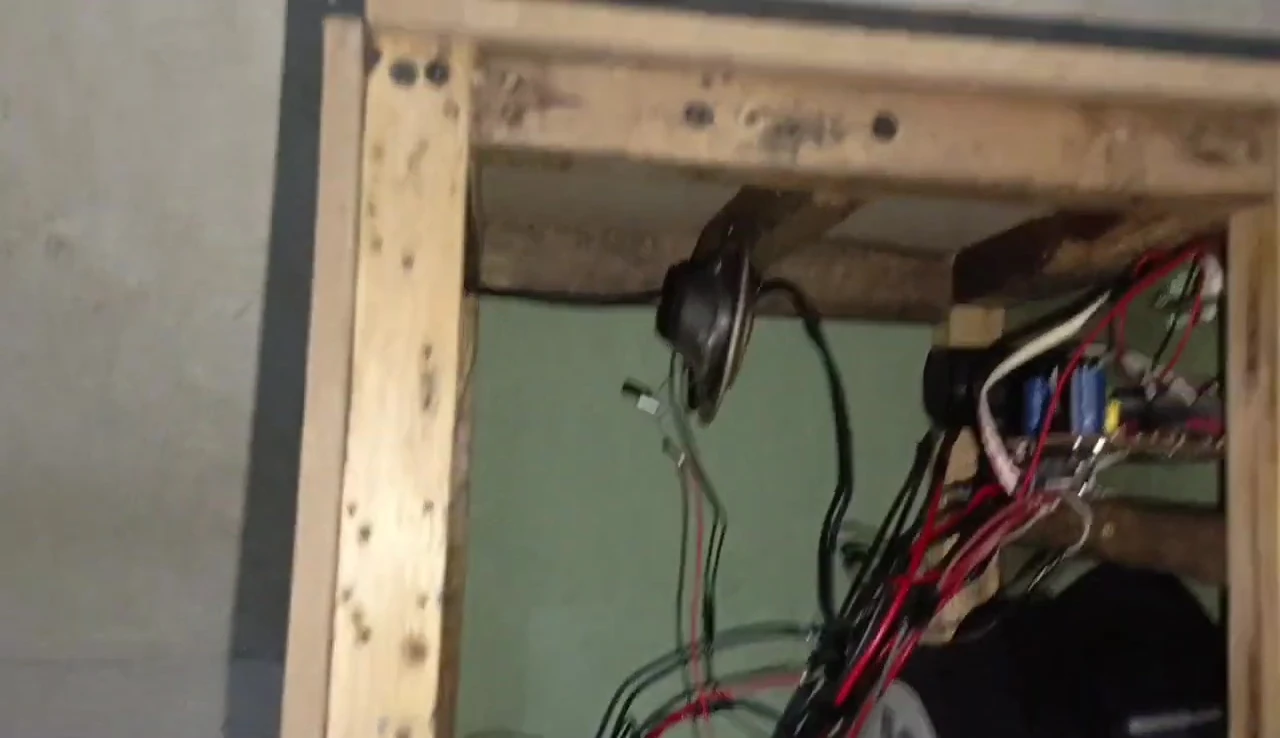

Inside the box, a robust internal frame provides support for the components. This frame consists of 16 pieces of wood, strategically placed to reinforce the structure and keep everything secure. The power supply and other electronic components are carefully mounted and secured, while insulators separate components to prevent short circuits.
The use of multiple wood pieces in the frame contributes to the stability and longevity of the speaker system. The thoughtful placement of the power supply and other electronic components enhances the overall efficiency and performance of the device.
Conclusion: A Successful Upgrade
The upgraded 10-inch active speaker box demonstrates a significant improvement over the original plywood version. The use of 9mm MDF, the internal wooden frame, and careful component placement have resulted in a much more robust and less resonant system. The speaker provides a richer, clearer audio experience, with significantly reduced vibration at higher volumes.
This DIY project successfully addresses the shortcomings of the initial design. It showcases how careful material selection and construction techniques can substantially enhance sound quality and overall performance. The resulting speaker box offers a balance of portability, affordability, and high-fidelity audio reproduction, making it a worthwhile project for enthusiasts.
