This article delves into the crucial aspects of sound stage reproduction: imaging and focus. Understanding these concepts is vital for anyone seeking a truly immersive and realistic listening experience. We'll explore how imaging, the precise placement of sounds within the listening space, contributes to a three-dimensional soundscape. We'll also examine focus, which determines the clarity and definition of each instrument's location, impacting the overall clarity and separation within a mix. Poor focus leads to a muddy, indistinct sound, while sharp focus provides exceptional clarity, even in complex arrangements.The article will investigate how both recording and playback equipment significantly impact imaging and focus. We'll analyze the role of software tools like Isotope Ozone in visualizing the soundstage, and the importance of speaker selection, placement, and room acoustics. Specific audio tracks will be used to illustrate these concepts, demonstrating the effects of panning, instrument placement, and phase manipulation. By the end, you'll have a deeper understanding of how to evaluate and optimize your audio system for optimal imaging and focus, resulting in a more enjoyable and accurate listening experience.
Read more: EPZ P50 In-Ear Monitor Review: A Breakout Performer?
What is Imaging in Audio?
Imaging in audio refers to the precise placement of sound sources within the listening space. It's about the ability to discern the location of individual instruments or voices within a mix. A well-imaged recording creates a three-dimensional soundscape, where instruments are clearly positioned left, right, center, or even beyond the traditional stereo triangle.
Imagine a singer in the center, a drum on the left, and a guitar on the right. Perfect imaging allows you to pinpoint each instrument in its specific location without confusion or overlap. This is a fundamental aspect of creating an immersive and realistic listening experience.
The quality of imaging is largely determined during the recording and mixing process. While you can't alter the placement of sounds within an existing recording, understanding how imaging works helps in appreciating the producer's choices and the capabilities of your sound system.
The Role of Focus in Audio
Focus, closely related to imaging, describes the tightness and clarity of each instrument’s location. While imaging defines where the instruments are, focus determines how precisely defined those locations are.
Poor focus results in instruments bleeding into each other, creating a muddy or indistinct soundscape. Sharp focus, on the other hand, provides exceptional clarity, making each element in the mix easily distinguishable, even when complex arrangements are present.
Achieving optimal focus depends on both the recording quality and your speaker setup. Proper speaker placement, room acoustics, and speaker design are all critical factors contributing to focus.
Analyzing Sound with Isotope Ozone

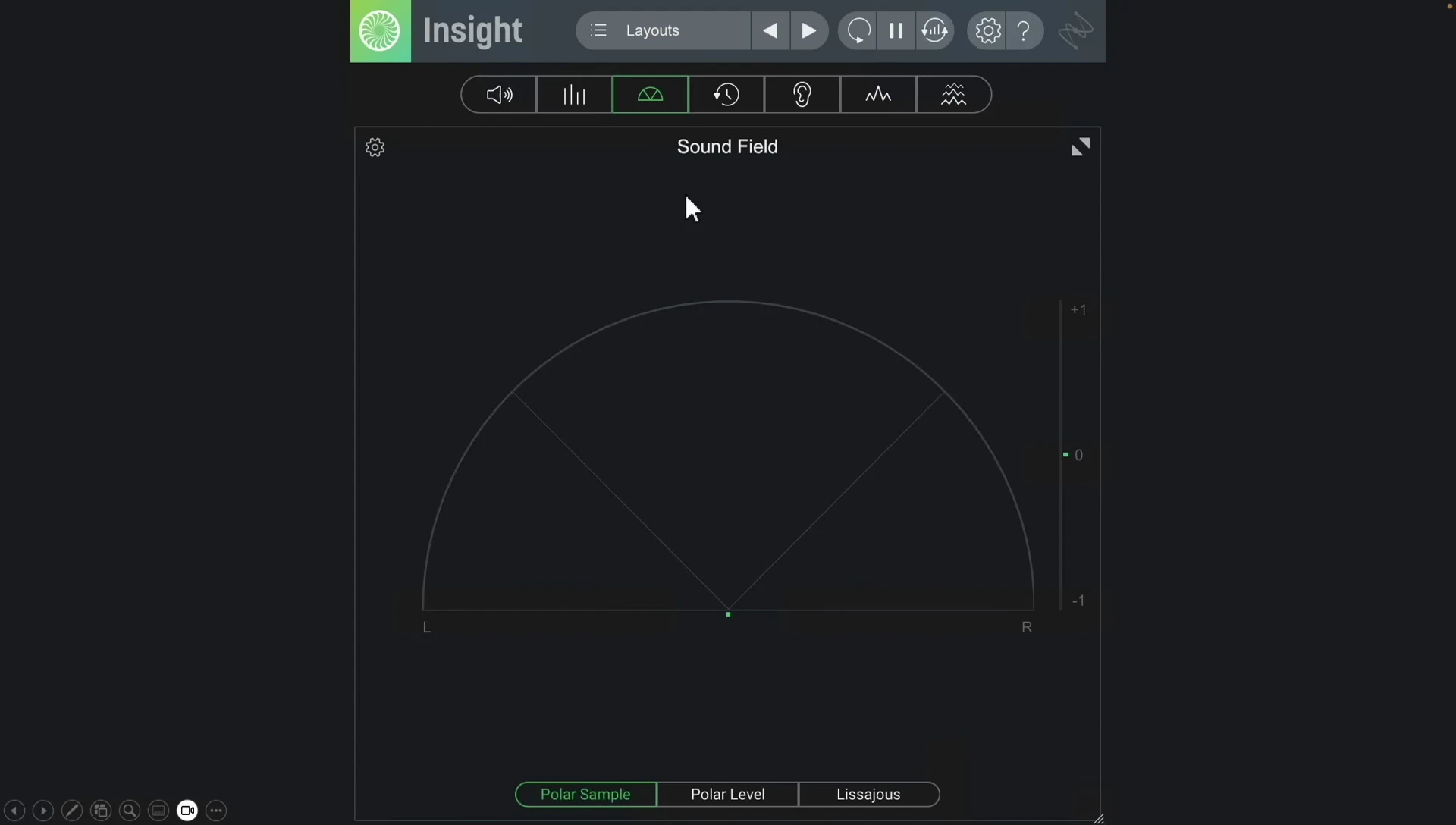

Isotope Ozone is a powerful software tool that provides visual representation of the sound stage. It allows you to see how instruments are positioned within the stereo field, facilitating a deeper understanding of mixing techniques.

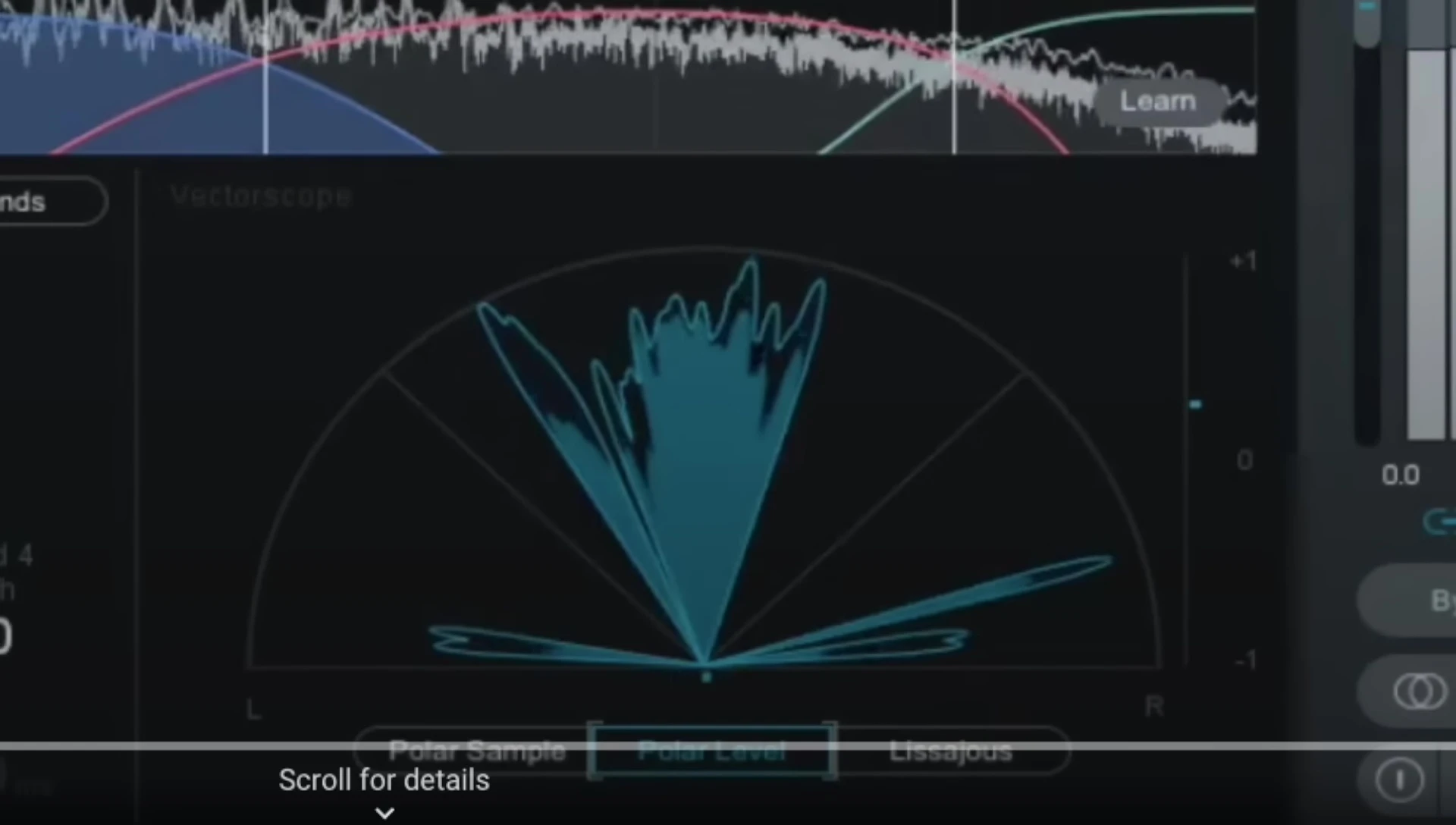

The software shows the in-phase and out-of-phase areas of the stereo field. Sounds in the center are in pure mono, while sounds panned to the left or right appear at the periphery. It also displays sounds placed in the out-of-phase sections, which creates a wider, more three-dimensional soundscape.
By visualizing the sound stage using Isotope Ozone, you can better understand how a mix was engineered. This helps in evaluating the precision of the imaging and the effectiveness of the focus achieved in a particular recording.
Illustrative Audio Examples
The speaker uses specific audio tracks to illustrate concepts of imaging and focus. These tracks highlight panning, instrument placement, and the effects of out-of-phase mixing techniques.

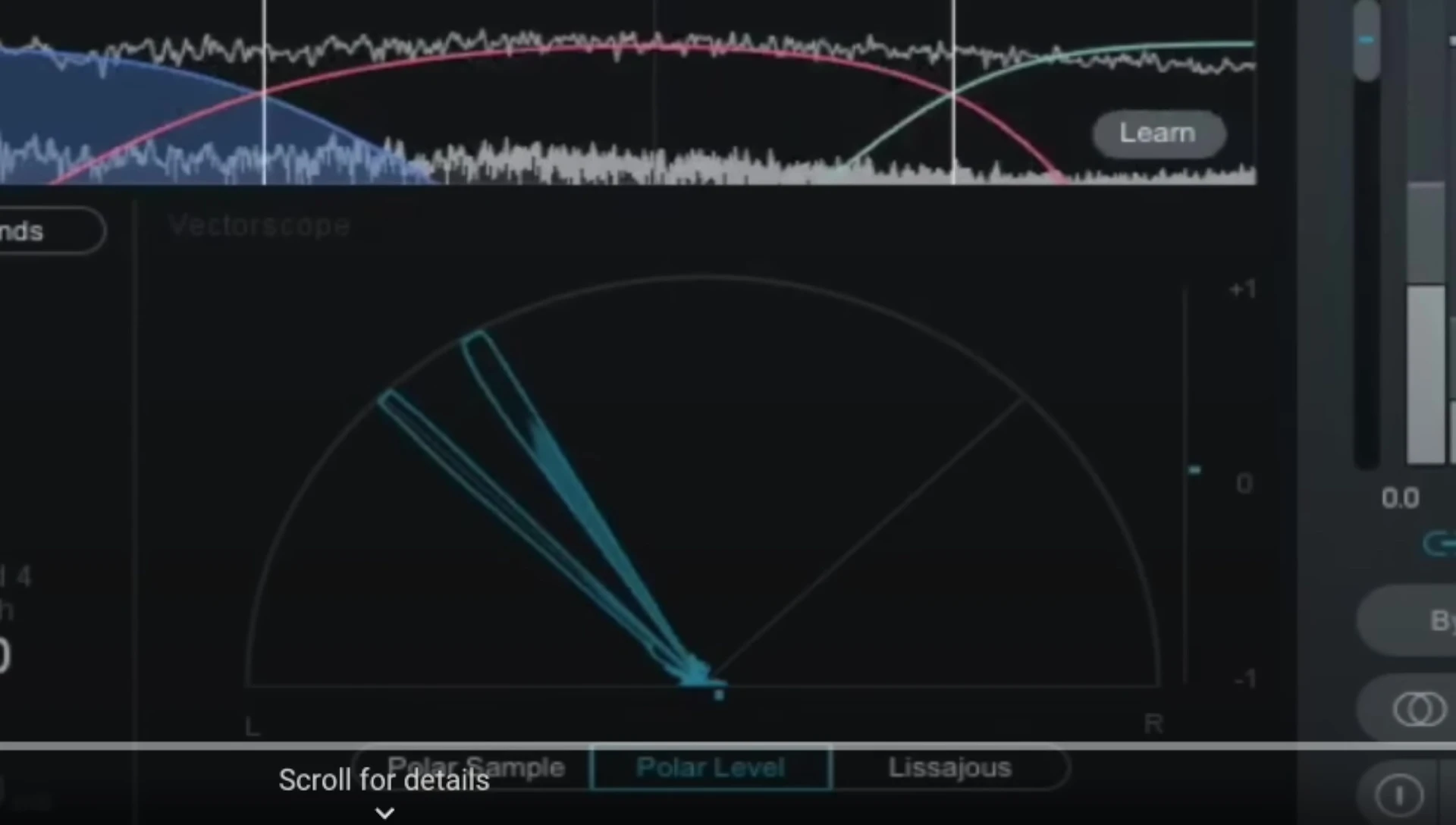

The IASA seven snare track demonstrates precise left-to-right panning of a snare drum, which is used to test the accuracy and definition of a system's imaging. The Spanish Harlem track by Rebecca Pigeon showcases a broader soundscape with instruments placed strategically throughout the stereo field.
The Dire Straits' 'Money for Nothing' illustrates extreme phase manipulation. The panning of the electric guitar highlights the complexities and the challenges of achieving focus when sounds are placed in out-of-phase areas, often outside the traditional stereo triangle.
Speaker Selection and Directivity
Speaker selection plays a crucial role in achieving both good imaging and focus. Pair matching of speakers is vital for consistent tonal balance across the frequency spectrum, leading to a tighter and more accurate soundstage.

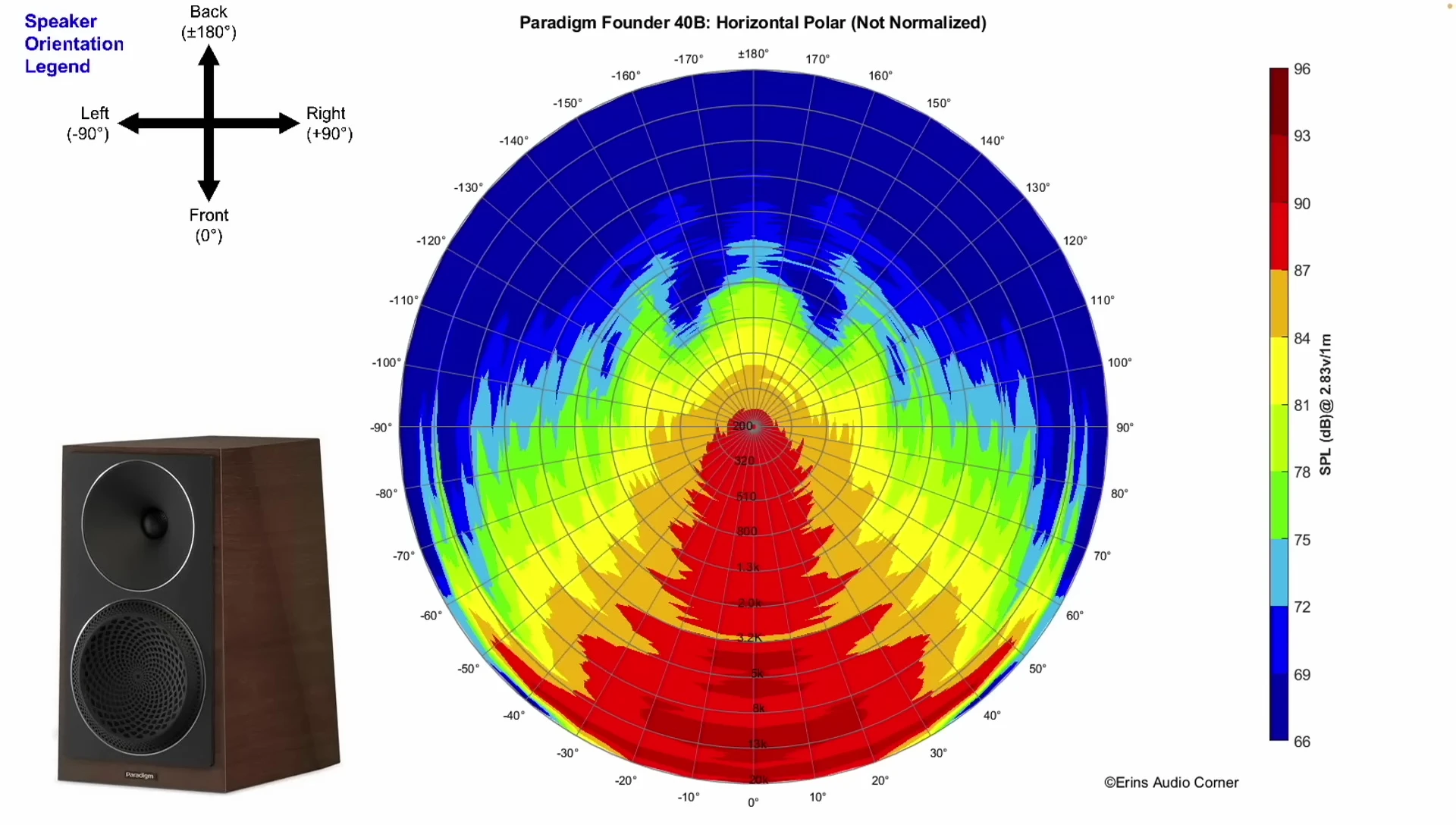

Directivity, the speaker's ability to maintain consistent tonal balance off-axis, is equally important. Poor directivity can result in instruments sounding differently depending on the listening angle and frequency range.
The speaker uses examples of speakers with good and bad directivity to illustrate how this aspect impacts the perceived imaging and focus in a listening environment.
Conclusion: Achieving Optimal Audio Experience
Achieving a high-quality audio experience requires careful consideration of both imaging and focus. These two aspects are intertwined and depend on multiple factors including the quality of the recording, speaker selection, speaker placement, and room acoustics.
Understanding the concepts of imaging and focus, along with the role of directivity, can significantly enhance your ability to evaluate and optimize your audio system. It allows you to identify potential issues and to make informed decisions when selecting speakers and setting up your listening space.
Ultimately, the goal is to create a soundscape where instruments are clearly defined, precisely located, and free from any undesirable blurring or smearing of sound.
